Name: EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Machine à former des rouleaux de panneaux sandwich
Price: 40,500.00 USD
Availability: InStock

À la maison > produits > Machine à former des rouleaux de panneaux sandwich >

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Lieu d'origine:

Chine

Nom de marque:

FMS

Certification:

Numéro de modèle:

Machine à former des rouleaux de panneaux sandwich

Nous contacter

Demandez un devis

Détails du produit

Diamètre de l'arbre:

70 mm ou comme exigence

Matériau des arbres:

Acier forgé de haute qualité 45#

Lame de coupe:

Acier du moule CR12 avec le traitement éteint

Vitesse de formage:

8-15 m/min

Matériau de la lame de coupe:

Cr12MOV, traitement thermique

Alimentation:

380 V, triphasé, 50 Hz

Matériau de l'arbre:

High Grade 45 # Steel, diamètre 70 mm

Épaisseur:

0,3-0,8 mm

Étapes de formation:

11 stations

Pouvoir:

5,5 kW

Largeur du matériau:

1200 mm

Mettre en évidence:

EPS rock wool sandwich panel machine

roof sheet roll forming machine

sandwich panel roll forming machine with warranty

Conditions de paiement et d'expédition

Quantité de commande min

1SET

Prix

negotiable

Détails d'emballage

Nu avec la feuille de plastique.

Délai de livraison

45 jours de worl

Conditions de paiement

T/T, LC

Capacité d'approvisionnement

20 ensembles par mois

Produits connexes

Vidéo

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Obtenez le meilleur prix

Vidéo

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Obtenez le meilleur prix

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Obtenez le meilleur prix

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

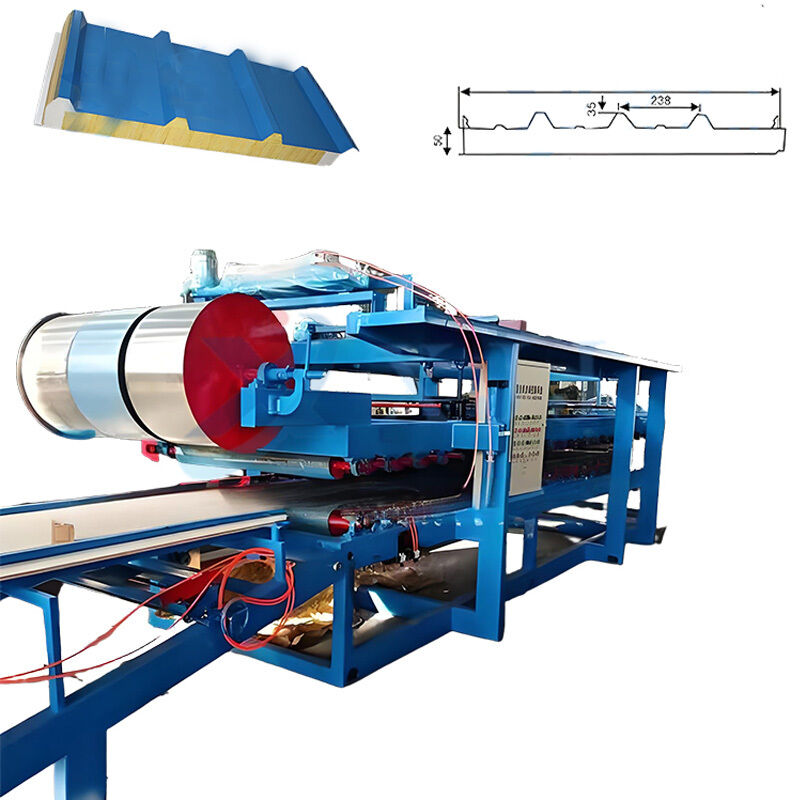

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

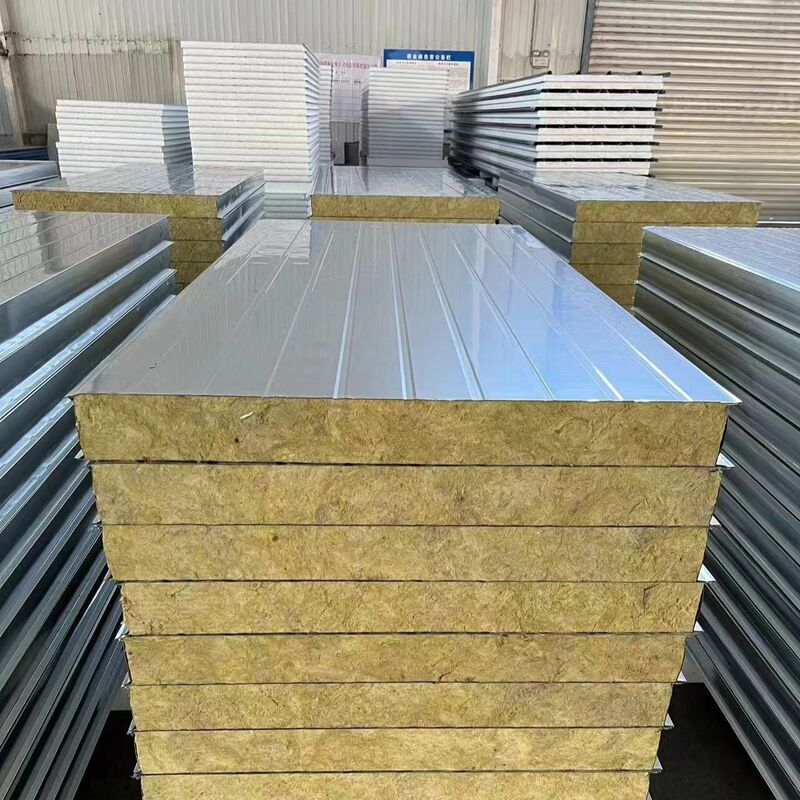

The Sandwich Panel Roll Forming Machine Production Line is specialized equipment designed for manufacturing EPS rock wool composite boards. These composite boards are widely used as building insulation materials for walls, roofs, and floors, providing excellent thermal insulation properties.

Main Functions

EPS board processing: cutting and trimming operations
Rock wool processing: cutting and precise paving
Composite bonding: hot pressing or cold pressing to bond EPS board and rock wool
Final molding: forming composite boards to meet required specifications

Equipment Composition

EPS board processing unit: handles cutting and trimming of EPS boards
Rock wool processing unit: manages cutting and paving of rock wool
Composite unit: bonds EPS board and rock wool together
Molding unit: ensures composite boards meet dimensional specifications
Control system: automated control of the entire production process

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Material Thickness	0.3-0.8 mm
Working Speed	8-15 m/min
Main Motor Power	7.5 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase (excluding electrical parts).

Repairs will not be performed during the guarantee period in the following circumstances:

Damage occurs due to natural disaster
Malfunction occurs due to user error
Malfunction occurs due to modifications
Malfunction occurs due to movement or shipment after installation

Payment Terms

40% in advance as down payment
60% paid before shipment processing

Delivery Information

FOB: Tianjin Xingang Port
Delivery Time: 65 days after down payment receipt

Frequently Asked Questions

Does one machine produce only one style panel profile?

Not exactly. For wider and double layer making machines, they can produce more than 6 different types of panels.

What support do you provide if the machine breaks down?

Our machines include a 12-month warranty period. If broken parts cannot be repaired, we will send replacement parts (customer pays express costs). After warranty period, we provide technical support for the equipment's entire lifespan through negotiated solutions.

Can you handle transportation?

Yes, please provide your destination port or address. We have extensive experience in transportation logistics.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide custom solutions?

Yes, we can design machines according to your specific requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide recorded testing videos for your reference, or we welcome you to visit our factory and test the machine personally.
