Name: Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line
Brand: Cangzhou Famous International Trading Co., Ltd
SKU: Machine à former des rouleaux de panneaux sandwich
Price: 40,500.00 USD
Availability: InStock

À la maison > produits > Machine à former des rouleaux de panneaux sandwich >

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine Sandwich Panelproduction Line

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Lieu d'origine:

Chine

Nom de marque:

FMS

Certification:

Numéro de modèle:

Machine à former des rouleaux de panneaux sandwich

Nous contacter

Demandez un devis

Détails du produit

Diamètre de l'arbre:

70 mm ou comme exigence

Matériau des arbres:

Acier forgé de haute qualité 45#

Lame de coupe:

Acier du moule CR12 avec le traitement éteint

Vitesse de formage:

5-8m/min

Matériau de la lame de coupe:

Cr12MOV, traitement thermique

Alimentation:

380 V, triphasé, 50 Hz

Matériau de l'arbre:

High Grade 45 # Steel, diamètre 70 mm

Épaisseur:

0,3-0,8 mm

Étapes de formation:

11 stations

Pouvoir:

5,5 kW

Largeur du matériau:

1200 mm

Mettre en évidence:

automatic precast EPS wall panel machine

concrete sandwich panel production line

sandwich panel roll forming machine with warranty

Conditions de paiement et d'expédition

Quantité de commande min

1SET

Prix

negotiable

Détails d'emballage

Nu avec la feuille de plastique.

Délai de livraison

45 jours de worl

Conditions de paiement

T/T, LC

Capacité d'approvisionnement

20 ensembles par mois

Produits connexes

Vidéo

Auto Sandwich Panel Production Line/PU Foam Sandwich Wall Panel Making Machine

Obtenez le meilleur prix

Vidéo

EPS Rock Wool Sandwich Roof Sheet Panel Roll Forming Machine

Obtenez le meilleur prix

50-300 Thickness Sandwich Panel Roll Forming Machine with Lichao Motor and 32KW Hydraulic Motor Power

Obtenez le meilleur prix

Mode EPS Sandwich Panel Line for 50-300 Thickness Production Customization

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

Automatic Precast EPS Concrete Sandwich Wall Panel Making Machine

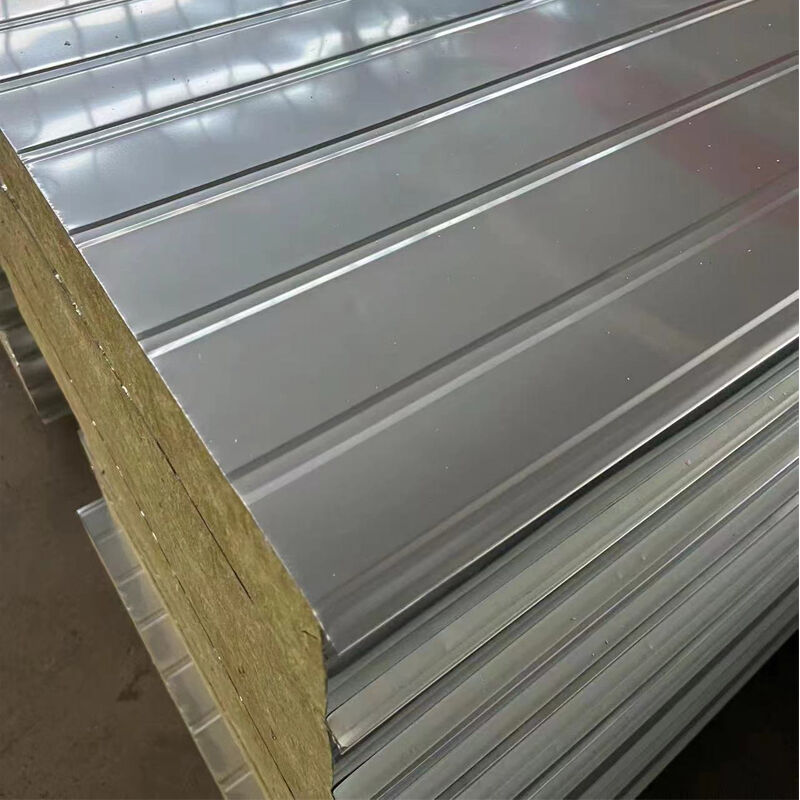

This advanced production line is designed for manufacturing EPS rock wool composite boards, a widely used building insulation material for walls, roofs, and floors. The automated system ensures efficient production of high-quality sandwich panels.

Production Process Overview

EPS Board Processing: Precision cutting and trimming operations
Rock Wool Processing: Accurate cutting and systematic paving
Composite Bonding: Hot or cold pressing to bond materials
Final Molding: Formation of specification-compliant composite boards

Equipment Components

EPS Board Processing Unit: Cutting and trimming systems
Rock Wool Processing Unit: Cutting and paving mechanisms
Composite Unit: Bonding and pressing systems
Molding Unit: Final shaping and sizing equipment
Control System: Automated process control

Technical Specifications

Material of Shaft	70 mm 45# steel forged
Thickness Range	50-250mm
Working Speed	5-6m/min
Dimensions	Approximately 34000mm × 2500mm × 2600mm
Total Power	32 KW
Electrical Hydraulic Station Power	4 KW
Hydraulic Station Pressure	12.0 Mpa
Roller Station	11/17 Rows

Warranty & Guarantee

1-Year Manufacturing Defect Guarantee (excluding electrical parts) from date of purchase.

Warranty Exclusions

Damage caused by natural disasters
Malfunctions due to user error
Issues resulting from unauthorized modifications
Problems occurring after relocation or shipment post-installation

Payment & Delivery Terms

Payment Structure: 40% advance payment, 60% balance before shipment
Delivery: FOB Tianjin Xingang Port
Lead Time: 65 days after receipt of down payment

Frequently Asked Questions

Does one machine produce only one style of panel profile?

No. For wider and double-layer making machines, it can produce more than 6 different types of panels.

What support is provided if the machine breaks down?

12-month warranty period. If parts cannot be repaired, we provide replacements (customer covers express costs). After warranty, we offer technical support and negotiated solutions for the equipment's lifetime.

Can you handle transportation?

Yes, we have extensive transportation experience. Please provide your destination port or address.

Are you a manufacturer or trading company?

We operate as both manufacturer and trading company.

Do you provide customization?

Yes, we design machines according to your requirements and profile drawings. Our engineers provide professional solutions for worldwide clients.

How can I verify machine testing before shipping?

We provide testing videos for reference, or welcome you to visit our factory and test the machine personally.
